LoRa has a funny reputation in the maker world. One person says, “I got two miles across town!” Another says, “Mine died behind one suspiciously judgmental tree.” Both stories can be true. That is exactly why simple range testing for LoRa modules matters. If you skip testing and trust a box label, a forum comment, or your cousin’s “RF intuition,” your project may work beautifully in the lab and then face-plant in the parking lot.
The good news is that range testing does not need to look like a NASA field campaign with clipboards, drones, and people wearing matching polos. A useful LoRa range test can be simple, repeatable, and surprisingly revealing. The trick is to test the right things in the right order: radio settings, antenna setup, placement, line of sight, packet success, and real-world obstacles. Once you do that, your “mystery RF problem” usually turns into a very ordinary issue with antennas, mounting, or expectations.
This guide explains how to run a practical LoRa range test, what metrics matter, which mistakes ruin results, and how to compare settings without fooling yourself. Whether you are building a farm sensor, an off-grid weather node, a telemetry link, or a backyard science project that has gotten gloriously out of hand, this article will help you test LoRa range the smart way.
Why LoRa Range Testing Is Different From Regular Wireless Testing
LoRa is built for long-range, low-power communication, not for pushing giant payloads at Wi-Fi-like speeds. That changes how you think about performance. In a LoRa link, you are balancing receiver sensitivity, spreading factor, bandwidth, coding rate, transmit power, and antenna efficiency. In plain English: you are trading speed for robustness, and sometimes trading convenience for physics.
That is why two LoRa modules with the same chipset can produce very different results in the field. The radio may be excellent, but a poor antenna, bad enclosure placement, sloppy grounding, or mismatched settings can turn “long-range radio” into “long-range disappointment.” A proper field test helps you separate the radio’s real capability from everything around it trying to sabotage the party.
The Goal of a Simple LoRa Range Test
A simple test should answer four questions:
- How far can my two LoRa modules communicate reliably in my actual environment?
- What radio settings give me the best balance of range, airtime, and reliability?
- How much do antenna choice, antenna height, and placement affect the link?
- At what point does packet loss make the setup unusable for my application?
Notice the word reliably. Maximum distance is a fun bragging number, but reliable range is what matters when a sensor must report every hour, every minute, or every time your water tank, gate, freezer, or weather station does something important.
What Actually Affects LoRa Range
1. Spreading Factor
Higher spreading factors generally improve sensitivity and extend usable range, but they also increase airtime. That means your packets stay on the air longer. Great for reaching farther. Not so great for battery life, latency, or busy channels. In real testing, SF7 often feels fast and efficient, while SF12 feels like the radio equivalent of a determined turtle: slow, calm, and weirdly hard to kill.
2. Bandwidth
Lower bandwidth usually improves sensitivity, which helps range. Higher bandwidth moves data faster but gives up some link budget. If your priority is a clean long-range test, lower bandwidth settings are often where the magic starts.
3. Coding Rate
Coding rate adds redundancy, which can improve resilience in rough RF conditions. But again, there is a cost in airtime. More protection is great until your test turns into a packet marathon.
4. Antenna Quality
This one is the serial troublemaker. A module with a proper antenna will embarrass a “better” radio using a bad one. For 915 MHz LoRa modules in the United States, even a simple quarter-wave wire can work well when cut correctly and mounted properly. A bad antenna, bent antenna, wrong-frequency antenna, or antenna pressed against metal will absolutely wreck range.
5. Antenna Height and Fresnel Clearance
Visual line of sight is nice. RF line of sight is better. The Fresnel zone is the invisible football-shaped area between antennas that should stay as clear as possible. If your antennas are low to the ground, the ground itself can block a big chunk of the useful signal path. Raising antennas often produces a bigger improvement than changing fancy radio settings. In other words, sometimes the best “firmware update” is a taller pole.
6. Obstacles and Environment
Trees, walls, vehicles, metal roofs, hills, utility structures, and even wet foliage can reduce range. Open rural land behaves very differently from a dense neighborhood, industrial site, or building interior. That is why lab range numbers and real range numbers are rarely best friends.
7. Legal Power Limits and Certified Hardware
If you are testing in the United States, your range ambitions still have to respect FCC rules and the limits of your certified module and antenna configuration. More power is not a free-for-all. You should test within the settings and antenna combinations allowed for your hardware and region.
What You Need for a Basic LoRa Range Test
- Two matching or compatible LoRa modules
- A known-good antenna on each module
- Stable power for both nodes
- Firmware that sends and receives fixed test packets
- A way to log packet success, RSSI, SNR, and packet count
- A phone or GPS to mark test locations
- A notebook, spreadsheet, or logging app
Keep the test payload small and consistent. Do not change packet size every five minutes and then act shocked when the results look messy. A fixed payload gives you cleaner comparisons between antenna setups and LoRa settings.
How to Set Up the Test Properly
Use a Simple Transmit-and-Acknowledge Pattern
The easiest method is this: one node sends a numbered test packet at a fixed interval, and the other node sends back an acknowledgment. That gives you a quick view of round-trip reliability, not just one-way luck. If your application is one-way only, you can still log received packets, but acknowledgments make troubleshooting much easier.
Log More Than Just “Worked” or “Didn’t Work”
For every test point, log:
- Distance from the base node
- Environment type
- Antenna type and height
- Spreading factor, bandwidth, and coding rate
- Transmit power
- Packets sent
- Packets received
- Packet success rate
- RSSI
- SNR
RSSI and SNR matter because LoRa can still decode packets at surprisingly low signal conditions. A link may look “ugly” on paper and still work. But as those values slide, packet loss usually starts sneaking in. Logging both metrics helps you see whether the link is healthy, fragile, or held together by optimism.
Lock the Radio Settings
Do not let the firmware auto-adjust data rate or quietly switch modes during the test. If you want to compare SF7 to SF12, keep everything else fixed. One test, one configuration. Otherwise, you are not comparing apples to apples. You are comparing apples to a fruit salad assembled by a raccoon.

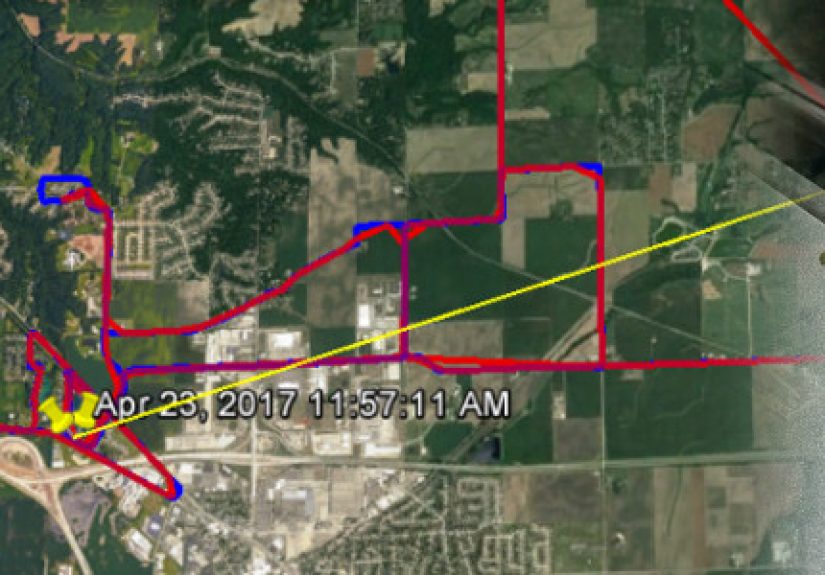

A Step-by-Step Simple Range Testing Method
Step 1: Verify the Hardware at Close Range
Start with the two modules only a few feet apart. Confirm that packets are received consistently and that RSSI/SNR values look sensible. If the link is unreliable at short range, stop right there. You likely have an antenna issue, bad soldering, wrong frequency, poor power, or mismatched firmware settings.
Step 2: Move to an Open Test Area
Use an open outdoor area first. Parks, fields, and rural roads are great starting points. This gives you a baseline before buildings and foliage start acting like unpaid villains.
Step 3: Raise Both Antennas
Put the base node at a fixed height. Even modest elevation helps. A node sitting on a metal bench, car roof, or wet grass is not a serious test setup. The mobile node should also be held in a realistic position and orientation. Keep antennas consistently vertical if that is your intended deployment.
Step 4: Send a Fixed Number of Packets Per Location
At each distance point, send something like 20, 50, or 100 packets. One packet is not data. One packet is a mood. Multiple packets tell you the actual health of the link.
Step 5: Record the Results and Keep Moving
Increase distance in practical increments. Depending on your environment, that may be 100 feet, 500 feet, or half a mile. Keep notes about terrain, obstacles, and whether you still have clear line of sight.
Step 6: Repeat With One Variable Changed
After your baseline test, change only one thing:
- Spreading factor
- Bandwidth
- Antenna type
- Antenna height
- Mounting location
- Transmit power
This is where range testing becomes useful instead of dramatic. You are no longer guessing. You are measuring.
A Practical Example Test Matrix
| Test | Settings | Purpose |
|---|---|---|
| Baseline | SF7, 125 kHz, stock antennas, 1 meter height | Establish a fast, modest-range reference |
| Long-Range Mode | SF12, 125 kHz, same antennas, same height | Measure the benefit of higher spreading factor |
| Antenna Test | SF9, 125 kHz, upgraded antennas | Compare antenna improvement without changing everything else |
| Height Test | Same as previous, antennas raised higher | See whether geometry beats configuration tweaks |
| Obstruction Test | Repeat best config in a suburban or wooded path | Find realistic deployment performance |
This kind of matrix gives you something better than a big heroic number. It gives you a deployment strategy.
Common Mistakes That Ruin LoRa Range Tests
Using the Wrong Frequency Antenna
A 915 MHz module deserves a 915 MHz antenna. Not “kind of close,” not “the connector fit,” and definitely not “it was in the drawer.” Frequency mismatch can make results look much worse than the radio deserves.
Placing the Antenna Next to Metal
Metal nearby can detune the antenna and change radiation patterns. If the antenna is smashed against a battery pack, enclosure wall, or mounting plate, you are not testing the module. You are testing how efficiently you can sabotage RF.
Ignoring Cable Loss
Long coax runs add loss. If you use an external antenna, keep the RF cable as short as practical. Sometimes moving the electronics farther away and keeping the antenna cable shorter is the better trade.
Testing Too Close to the Ground
Ground proximity can damage results fast, especially over longer paths. If you are serious about range, raise the antennas.
Changing Too Many Variables at Once
New antenna, new firmware, new spreading factor, new enclosure, new payload, and a different test route? Congratulations, you have created a mystery novel.
Trusting Maximum Range Claims
Vendors often quote ideal range under favorable conditions. Those numbers are useful as an upper-bound clue, not as a promise from the radio gods. Open-country line-of-sight results will not automatically match a crowded neighborhood or a warehouse full of steel shelving.
How to Interpret Your Results
The best result is not always the farthest packet. A more useful conclusion might look like this:
- SF7 works reliably to 0.7 miles in a suburban route with low airtime.
- SF9 reaches 1.3 miles with acceptable delay.
- SF12 reaches farther, but airtime becomes too long for frequent updates.
- Upgrading antennas improved packet success more than increasing power.
- Raising the base antenna by 10 feet made the biggest single difference.
That is actionable. That tells you how to deploy your nodes, how often to transmit, and where to spend money. Hint: the answer is often “better antenna setup,” not “buy three more modules and hope one of them has stronger vibes.”
Best Practices for Real-World LoRa Deployments
- Start with an open-area baseline before testing difficult environments.
- Use the correct frequency antenna and mount it cleanly.
- Keep antenna orientation consistent between nodes.
- Log packet delivery rate, RSSI, and SNR at every test point.
- Change one variable at a time.
- Test at realistic mounting heights.
- Repeat your best configuration in the actual deployment environment.
- Respect regional frequency settings and hardware certification limits.
Experience in the Field: What Simple LoRa Range Testing Really Teaches You
The biggest lesson from simple range testing is that LoRa is usually more capable than your test setup. I have seen links improve dramatically without touching the code at all. The “fix” was often embarrassingly physical: straighten the antenna, move the node away from metal, stop laying the board on a car hood, or raise the base station higher than knee level. RF has a sense of humor, and it loves punishing tiny shortcuts.
One of the most useful habits is starting every session with a boring short-range sanity check. It feels almost too simple, but it saves hours. When the modules fail at close range, the problem is rarely “insufficient link budget.” It is usually the wrong antenna, poor soldering, the wrong frequency setting, weak power delivery, or a forgotten firmware change from yesterday’s experiment. That five-minute check can rescue an entire afternoon.
Another experience that shows up again and again is how misleading a single success can be. A node may send one packet from an impressive distance, and everyone suddenly starts celebrating like a moon landing just happened in the parking lot. Then the next 30 packets vanish. That is not a reliable link. It is a lucky event. Real LoRa testing rewards patience. If you send a batch of packets and log delivery percentage, the truth appears quickly.
Antenna experiments are especially humbling. People love to talk about transmit power and spreading factor because those settings live in software menus and feel gloriously technical. But in real tests, antenna changes often produce the largest practical gains. A correctly cut quarter-wave wire can outperform a fancy-looking antenna that is poorly mounted, wrong for the band, or connected through a lossy cable. The humble wire whip is the kind of overachiever that never brags and still gets the job done.
Height is another repeat offender. The difference between testing at waist height and testing from an elevated mast or rooftop can feel almost unfair. Suddenly the packets stop fading, the SNR looks healthier, and the route that used to be unreliable starts behaving like a proper link. That experience teaches a powerful lesson: range is not just about transmitter power. It is about geometry, clearance, and giving radio waves a reasonable path instead of asking them to tunnel through the world out of politeness.
Field testing also teaches respect for the environment. An open rural road can make almost any LoRa setup look heroic. Move that same hardware into a neighborhood with parked vehicles, dense trees, fences, and buildings, and reality shows up wearing steel-toe boots. Wet foliage is especially good at ruining optimism. So are hill crests that seem harmless until they quietly chew up your Fresnel zone. The fix is not frustration; it is better testing. Walk the route, take notes, and let the environment explain itself.
Perhaps the most valuable experience is learning to define success before the test begins. If your application only needs one small packet every 15 minutes, a slower long-range configuration may be perfect. If you need frequent updates, low latency, or many nodes sharing a channel, your “best range” settings may be completely wrong for the job. Simple range testing helps you stop chasing the farthest packet and start choosing the most useful configuration. That shift turns LoRa from a science fair trick into a dependable engineering tool.
In the end, the best range test is not the most expensive or the most dramatic. It is the one that is repeatable, honest, and close to your real deployment. That is where good LoRa systems come from.
Conclusion
Simple range testing for LoRa modules is less about chasing mythical distance and more about understanding how your hardware behaves in the real world. With a clean test plan, fixed settings, proper logging, and a healthy respect for antennas and mounting height, you can quickly learn what your modules can actually do. The result is a more reliable link, fewer surprises in deployment, and much less time spent blaming the radio for problems caused by a bad antenna zip-tied next to a metal box.
Test simply. Measure honestly. Change one variable at a time. And whenever possible, give your antenna a fighting chance.
